J-Nut

Back

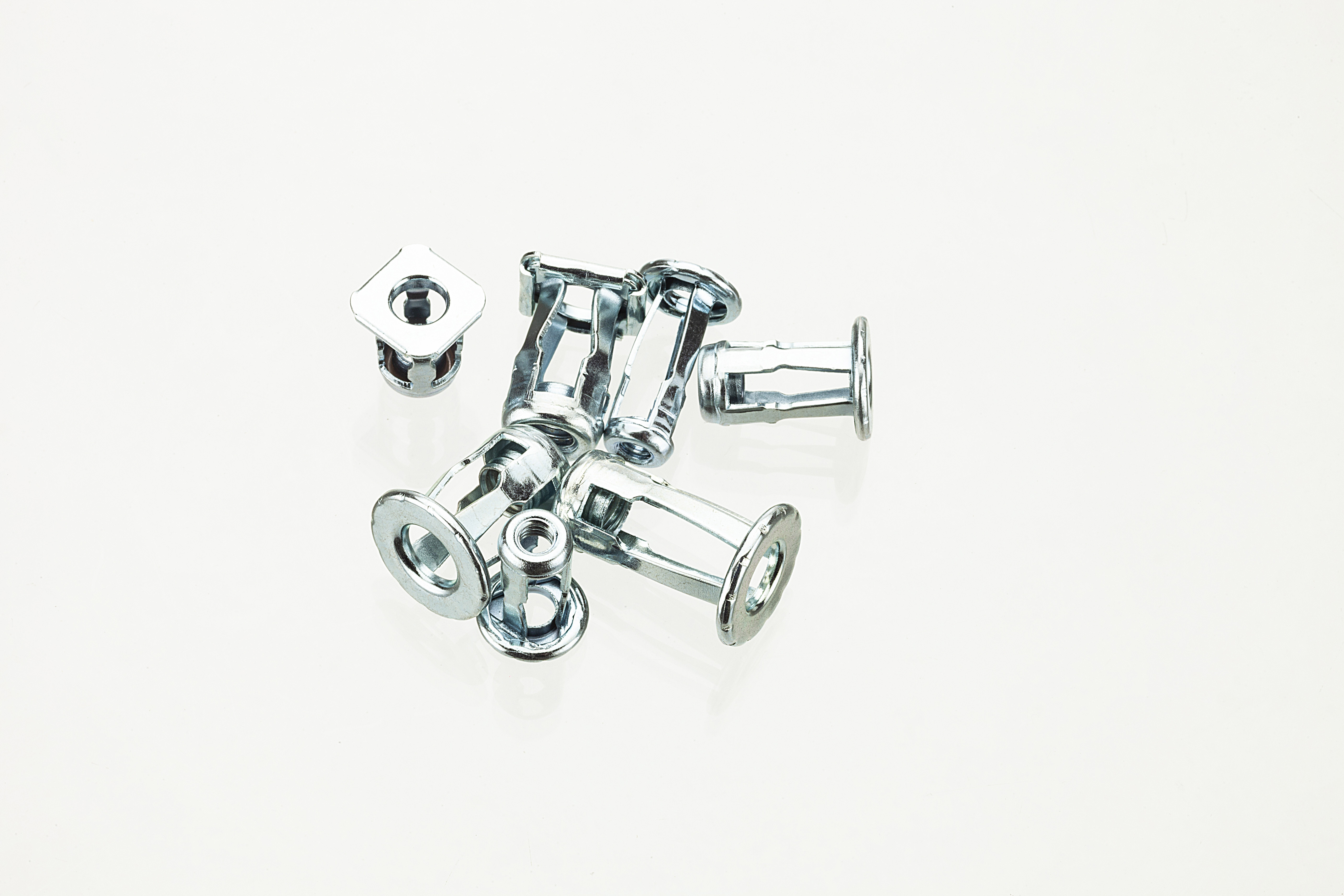

J-Nut

Torque strength:

M4-min 2.0N.m
M5-min 3.0N.m
M6-min 4.5N.m

Material:

    Steel

Surface treatment:

    Zinc plated Cr3+

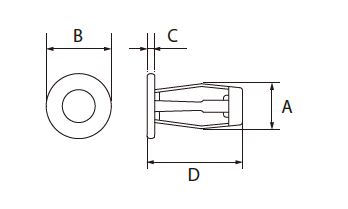

PRODUCT SIZE :





(Unit : MM)

 ITEM  NO

THREAD

SIZE

     A         B         C         D
4SN M4 8 11.9  1.8  16.5
4LN M4 8 11.9 1.8 21.4
5SN M5 9.7 13.5 1.8 18.2
5LN M5 9.7 13.5 1.8 22.5
6SN M6 11.1 15.9 1.8 18.6
6LN M6 11.1 15.9 1.8 23.3



 (Unit : INCH)

 ITEM  NO

THREAD

SIZE

     A         B          C        D
4SN 6-32 0.315 0.469 0.07 0.65
4LN 6-32 0.315 0.469 0.07 0.843
5SN 10-24 0.382 0.532 0.07 0.717
5LN 10-24 0.382 0.532 0.07 0.886
6SN 1/4-20 0.437 0.626 0.07 0.732
6LN 1/4-20 0.437 0.626 0.07 0.917
