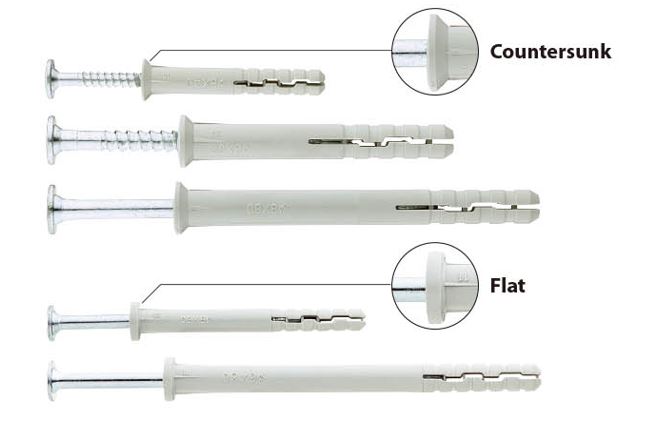

Nylon Hammer Fixing
Material:
Plug- Nylon
Screw- Steel
Surface treatment:
Screw- Zinc plated Cr3+

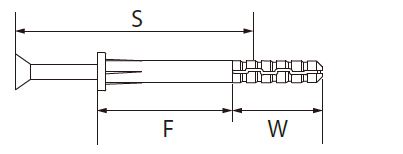

PRODUCT SIZE :
(Unit : MM)
| SIZE |
DRILL (Ø) |
MIN HOLE DEPTH |
MIN DEPTH IN THE WALL W |
MAX DEPTH LENGTH F |
SCREW |
| 5X30 | 5 | 45 |
20 |
10 | 3.3X35 |
| 5X50 | 5 | 65 | 20 | 30 | 3.3X55 |
| 6X40 | 6 | 55 | 20 | 20 | 3.6X45 |
| 6X60 | 6 | 75 | 25 | 35 | 3.6X65 |
| 6X80 | 6 | 95 | 25 | 55 | 3.6X85 |
| 8X60 | 8 | 75 | 32 | 28 | 4.8X65 |
| 8X80 | 8 | 95 | 32 | 48 | 4.8X85 |
| 8X100 | 8 | 115 | 32 | 68 | 4.8X105 |
| 8X120 | 8 | 135 | 32 | 88 | 4.8X125 |
| 8X140 | 8 | 155 | 32 | 108 | 4.8X145 |
