M-type(尖尾)

Hollow Wall Drive Anchor-M type
(中空尖尾壁虎-M型)
with washer
with Truss head screw

Back

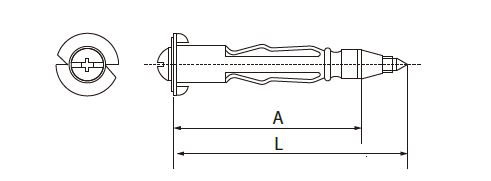

Hollow Wall Drive Anchors-M type

with washer
with Truss head screw


the thicknesss of steel plate:

M4-0.6mm

Material:

    Steel
Unit:

    INCH
Surface treatment:

    Zinc plated Cr3+

PRODUCT SIZE :

(Unit : Inch)

ITEM NO SIZE SCREW L A

DRILL(Ø)

 GRIP
405D 1/8"XSD

6-32

 1-3/8" 13/16" 5/16" UP to 1/4"
409D 1/8"SD 6-32 1-3/4" 1-1/4" 5/16" 1/8" to 1/2"
422D 1/8"SLD 6-32 2-5/16" 1-13/16" 5/16" 1/8" to 3/4"
423D 1/8"LD 6-32 2-5/16" 1-13/16" 5/16" 5/8 to 7/8"
